Main Specification

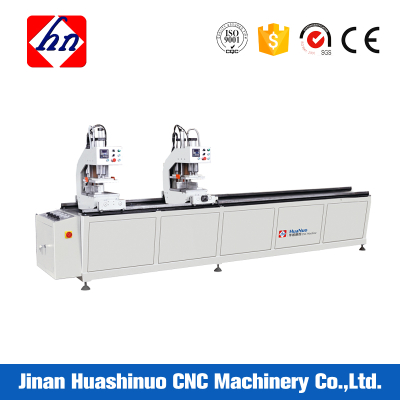

1. PVC welding machine for PVC window and door is used for welding and machining of PVC door and window.It can processing all kinds of shapes.
2. The work type is swing-out, it adopts pneumatic transmission to clamp and cut the profiles.
3. The structure of the machine is simple ,it is easy to operate and has high precision.
4.PLC control, pneumatic drive, simple operation, stable capability. Weld two point, single point, transom, cross -transom and special angle.
5.Two heads can work simultaneously, individually and commutatively ,Assembled with B to make up double-four-corner welding machine
6.This machine is made up of machine heads, frame, electric controller box, profile-holding frame, etc.
- Size: 8.5
- Place of Origin: China
- Brand Name: huashinuo
- Model Number: SHJ2Y-120*3500
- Weight: 850.000 kg
Technical Parameter
| Working air pressure | 0.4~0.6MPa |
| Air consumption | 200 L/min |
| Input Voltage/frequency | 220V/ 50 Hz |
| Input Power | 2.5 KW |
| Welding height | 20~120 mm |
| Welding width | ≤120mm |
| Welding length | 400~3500 mm |
| Dimension | 4300mm×1100mm×1700mm |
| Net Weight | 600 KG |
