Product Details
- Place of Origin: china
- Brand Name: huashinuo
- Model Number: 60001
Main features

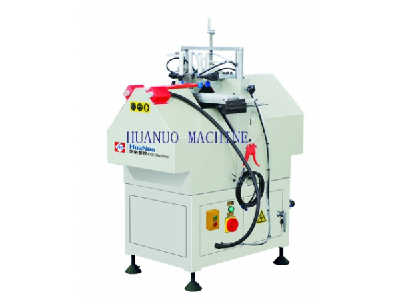

1. The machine applies to processing glass bead
2.It adopts two saw blades which cut off and chamfer angle for glass bead at the same time.
3.It has characteristics of easy operation, stability, and high efficiency.
4..It can measure the window inner frame‘s size
5.Furthermore, there is a tiny adjusting device, with which you can adjust the tightness degree as needed at will.
- Place of Origin: china
- Brand Name: huashinuo
- Model Number: 60001
Main technical parameter
| Air pressure | 0.4-0.6Mpa |
| Air consumption | 20L/min |
| Saw cutting(W) | 100mm |
| Saw cutting(H) | 29mm |
| Processing range(length) | 320-1800mm |
| Main motor power | 2*0.75kw |
| Main motor rotation speed | 2800r/min |
| Working voltage | 380V 50HZ or as customer specification |
| Over all dimension(L*W*H) | 1300*700*1350MM |
| Weight | 210kg |
