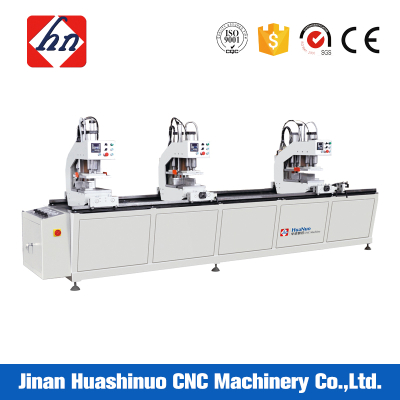

Three head pvc window weldng machine

Three head pvc window weldng machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-03-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  11
  • Place of Origin:  China
  • Brand Name:  huashinuo
  • Model Number:  SHJ3Y-120*3500
  • Weight: 1000.000 kg


Main Specification
1. PVC welding machine for PVC window and door is used for welding and machining of PVC door and window.It can processing all kinds of shapes.
2. The work type is swing-out, it adopts pneumatic transmission to clamp and cut the profiles.

3. The structure of the machine is simple ,it is easy to operate and has high precision.

4.PLC control, pneumatic drive, simple operation, stable capability. Weld three-point, two point, single point, transom, cross -transom and special angle.

5.Three heads can work simultaneously, individually and commutatively ,Assembled with B to make up double-four-corner welding machine

6.This machine is made up of machine heads, frame, electric controller box, profile-holding frame, etc.

Technical Parameter

Working air pressure0.4~0.6MPa
Air consumption200 L/min
Input Voltage/frequency220V/ 50 Hz
Input Power3.5 KW
Welding height20~120 mm
Welding width≤120mm
Welding length400~3500 mm
Dimension4300mm×1000mm×1700mm
Net Weight1000 KG


  • Size:  11
  • Place of Origin:  China
  • Brand Name:  huashinuo
  • Model Number:  SHJ3Y-120*3500
  • Weight: 1000.000 kg

Technical Parameter

Working air pressure0.4~0.6MPa
Air consumption200 L/min
Input Voltage/frequency220V/ 50 Hz
Input Power3.5 KW
Welding height20~120 mm
Welding width≤120mm
Welding length400~3500 mm
Dimension4300mm×1000mm×1700mm
Net Weight1000 KG
